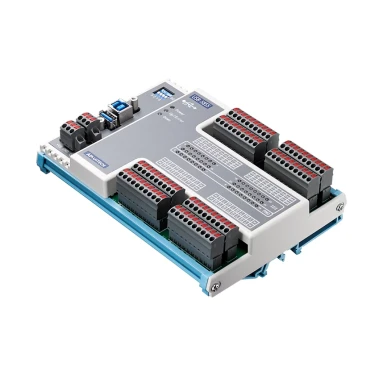

The USB-5800 series are industrial isolated digital input and output USB 3.0 I/O modules. Its compact size and DIN-rail mount kit can be installed easily in a cabinet. Built-in USB hub can support daisy chain topology. Euro-type pluggable terminal blocks and LED indicators help users to maintain and set up their system. All digital input and digital output channels are protected by 2,500 VDC isolation.

Features

• USB 3.0 SuperSpeed
• Daisy chainable by a built-in USB hub
• 32-ch digital input and 16-ch PhotoMOS Relay output (Form A) isolation
• Wide input voltage range (10 ~ 30 VDC)
• 1500 VDC optical isolation for relay outputs
• Quick removable European-type connector
• LED indicators for I/O status
• Supported operating systems: Windows XP/7/8/10

Specification

Download USB-5855 Specification in PDF [ENG]

Selection Guide for USB Modules

The guide on how to choose USB modules can be found in the article "Selection Guide for USB Modules" on the Solutions page, linked here.
