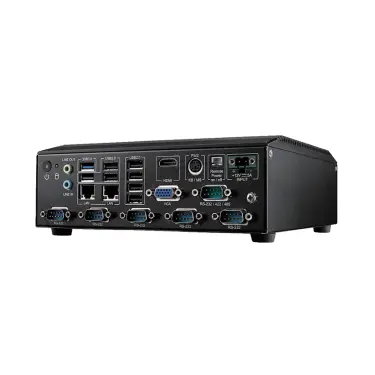

Front Access Fan-less Micro Computer AIMC-2000
- Device model: DF-RP-1162
- Brand: Advantech
Viewed 396 times
The Advantech AIMC-2000 is an industrial-grade, fanless micro computer that offers a reliable solution for industrial automation and machine control applications. Powered by an Intel® Celeron® Quad Core J1900 processor, it provides excellent performance while maintaining low power consumption, which is critical in industrial environments. The AIMC-2000 supports a variety of video and graphics outputs, including VGA and HDMI, enabling connection to various display devices. The device also includes numerous interfaces, such as 6 COM ports, 8 USB ports, and multiple I/O connections, ensuring flexible connectivity and device control. Designed to work in confined spaces, the AIMC-2000 features a front-access design, providing easy access to all important ports and connections. The system is engineered for reliability, offering long-term stability even under intensive operating conditions. The device utilizes industrial-grade components that ensure durability and a long lifespan.
Features
- Intel® Baytrail Platform
- Intel® Celeron® Quad Core J1900/N2807 SoC
- Fanless Design
- Compact & Rich I/O Configuration
- One internal 2.5" SATA HDD bay & one mSATA slot for storage
- VGA , HDMI, 2 GbE LAN, 7 USB 2.0, 1 USB 3.0, 5 RS-232,1 RS-232/422/485
- One mini PCIe expansion to support full size module
- Line in , Line out with 6W amplifier
- Energy Savings
- DC 12V power input
Specifications
Download AIMC-2000 specification (EN, .pdf)
| Model | AIMC-2000J-00A2 |
| Processor System | |
| CPU | Intel J1900 |
| Core | 4 |
| Base Frequency | 2.0 GHz |
| L2 Cache | 2 MB |
| BIOS | AMI 64Mb SPI Flash |
| Memory | |
| Technology | Dual Channel DDR3L 1333/1066 MHz (Non ECC) |
| Max. Capacity | 8 GB (4 GB per SO-DIMM) |
| Socket | 2 x 204-pin SODIMM |
| Graphics | |
| Chipset Integrated | Integrated Intel HD Graphics |
| Expansion slot | |
| mini PCIe | 1, full size |
| Ethernet | |
| Interface | 10/100/1000 Mbps |
| Controller | 2 x Realtek 8119I |
| Drive bay | |
| 2.5" HDD (internal) | 1 |
| mSATA | 1 |
| I/O Interface | |
| Display | VGA, HDMI |
| USB | 7 USB 2.0, 1 USB 3.0 |
| Serial | 1 RS-232/422/485, 5 RS-232 |
| PS/2 | 1, KB/MS |
| Audio | Line in, Line out with 6W amplifier |
| DC jack | 1, Phoenix 2 pin |
| Power Supply | |
| Connector Type | Phoenix 2 pin connector |
| Input Voltage | DC 12V |
| Power consumption | Typical: 8.27W Max: 16.39W |
| Miscellaneous | |
| LED Indicators | HDD |
| Control | Power on/off switch |
| Environment | |
| Temperature | Operating: -20 ~ 60° C (mSATA); 0 ~40° C (HDD) Non-operating: -40 ~ 85° C |
| Humidity | Operating: 95% @ 40° C, non-condensing Non-operating: 95% @ 60° C, non-condensing |
| Vibration | Operating: 1Grms, random, 5~500Hz, 3 axes, 1 hr/axis (HDD) 3Grms,random,5-500Hz,3 axes,1hr/axis (mSATA) Non-operating: 2G, sine, 5~500Hz, 3 axes, 1 hr/axis (HDD) |
| Shock | Operating: 10G, half sine wave, 11 ms duration (HDD) 30G, half-sine wave,11ms duration (mSATA) |
| EMC | CE/FCC, CCC, BSMI |
| Safety | CCC, UL, BSMI |
| Physical Characteristics | |
| Dimension (W x H x D) | 200 x 69 x 200 mm |
| Weight | 1.8 kg |
