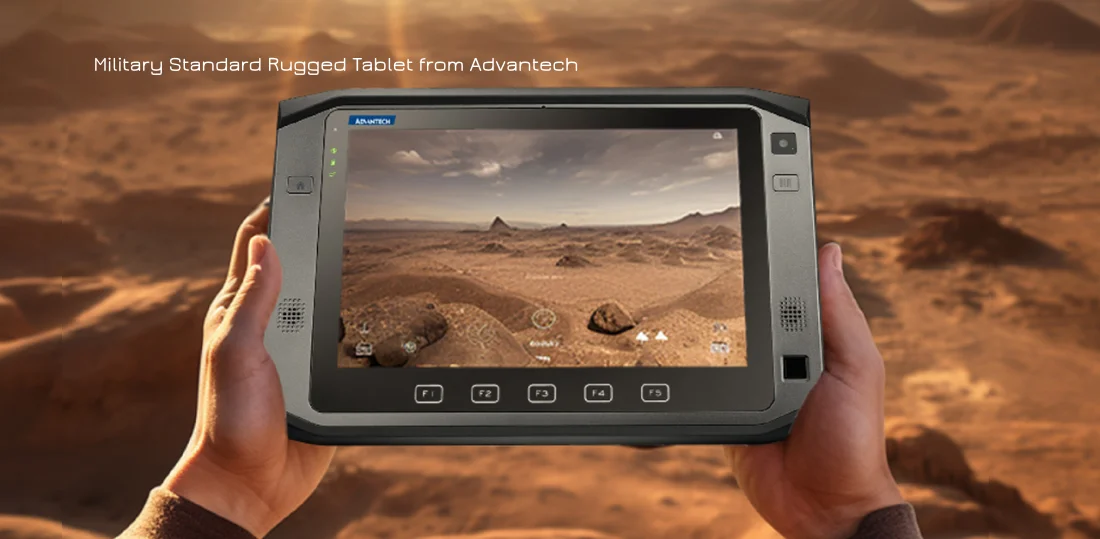

PWS-872FL is an industrial-grade tablet equipped with an Intel® Core™ i3/i5/i7/Celeron® processor, 10.1" WXGA and WUXGA LED display with multi-touch PCAP control, mSATA SATA III SSD storage, multiple I/O, and WiFi 6, NFC, 4G LTE, and Bluetooth 5.2 communication technologies. The built-in front (2MP) and rear (8MP) cameras, 1D/2D barcode scanner, and NFC reader provide convenient data collection tools, and the high-brightness sunlight-readable display supports outdoor applications. For mobile field-service applications, PWS-872FL can be integrated with a hot-swappable external battery that supports up to 11 hours of operation to enable long-duration use. Designed for harsh environments, PWS-872FL is also MIL-STD-810G certified for shock and vibration tolerance, IP65 rated for water and dust ingress protection, and can withstand drops up to 4 ft. Moreover, PWS-872FL can be integrated with various peripherals, such as a vehicle docking station, multi-bay battery charger, universal cover, and various I/O extension modules, to provide application-specific solutions. Moreover, PWS-872FL is equipped with Advantech’s DeviceOn/iService software, a next-generation unified device management solution based on the WISE-DeviceOn platform. With support for batch operations and multi-device control, DeviceOn/iService enables easy device configuration and deployment for convenient remote device management.



Features

• 7th generation Intel® Core™ i3/i5/i7/Celeron® processor with integrated Intel® Turbo Boost technology
• 10.1" high-brightness WXGA and WUXGA LED display with scratch-resistant Corning® Gorilla® Glass 3-panel
• Multi-touch PCAP touchscreen with support for gloved operation
• Rugged design with MIL-STD-810G certification, IP65 rating, and 4-ft. drop tolerance
• WiFi 6, 4G LTE, Bluetooth 5.2, and GPS modules with BeiDou/GLONASS support
• Built-in front and rear cameras, 1D/2D barcode scanner, and NFC RFID reader
• The hot-swappable battery supports up to 11 hours of operation
• Microsoft® Windows 10 IoT LTSC OS
• Optional peripherals include a vehicle docking station, desk docking station, and multiple extension modules



LCD display

The PWS-872FL features two LED display options: a WXGA 1280x800 screen with 300-nit brightness and a WUXGA 1920x1200 screen with 1000-nit brightness, both with anti-glare surfaces for sunlight readability. It includes a multi-touch projected capacitive touchscreen with a scratch-resistant Corning® Gorilla® Glass 3 panel and supports operation with gloves. Sensors include ambient light, accelerometer, e-compass, and gyroscope for screen rotation (0°, 90°, 270°).

1. 2M camera
2. Home key (programmable)
3. Function key
4. Speakers
5. Fingerprint scanner
6. Programmable capacitive touch input
7. 8M AF camera with flash
8. Fan
9. NFC reader
10. Capacitive stylus
11. Latch (for external battery)

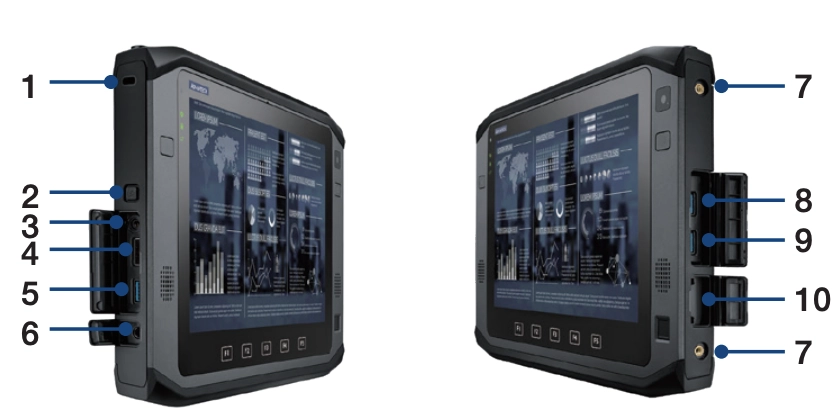

Input/Output



1. Kensington Security Slot

2. Power button

3. Audio combo jack

4. HDMI connector (1.4)

5. USB 3.0 port

6. DC-in

7. Screw hole for extension modules

8. USB 3.0 port

9. USB 2.0 port

10. SD card slot (SDXC)



Windows 10 IoT Enterprise Operating System

The PWS-872FL comes with Windows 10 IoT Enterprise 64-bit, a full version of Windows 10 tailored for IoT solutions. It includes enhanced management and security features beyond Windows 10 Pro, such as AppLocker and Device Guard. This OS provides the same tools as regular Windows but differs in licensing and cost based on the processor. It's ideal for specialized industrial PCs that need stability and security, performing specific tasks like controlling machines or medical equipment. The Long Term Support Branch (LTSB) version focuses on essential security updates, avoiding frequent feature changes, and excludes features like Edge, Cortana, and the Windows Store for better stability.



Specifications

Download PWS-872FL specifications [EN, .pdf]

Model	PWS-872-5HCG0X201
Computing System
Operating System	Microsoft® Windows 10 IOT LTSC (64 bit), Linux Ubuntu1604
Camera
Front	2 megapixel CMOS sensor camera with video streaming support
Rear	8 megapixel CMOS sensor camera with LED flash and auto focus
System
Processor	Intel® Core™ i5-7300U, 2.6 GHz (3.5 GHz Intel® Turbo Boost)
Storage	128GB
Data Collection	2D barcode scanner
Memory	8GB
Display
Display Type	1920x1200, 1000nits
Resolution	WUXGA 1920x1200, 1000 nits
Wireless Communication
GNSS	Integrated GPS, BeiDou, GLONASS
WLAN/Bluetooth	WiFi6+Bluetooth5.2
Sensors
-	Ambient light, accelerometer (g-sensor), e-compass, gyroscope (0°, 90°, 270° screen rotation)
Environment
Operating Temperature	-20 ~ 50 °C/-4 ~ 122 °F (0 ~ 40 °C/32 ~ 104 °F when charging to protect the battery)
Storage Temperature	-40 ~ 60 °C (-40 ~ 140 °F)
IP Rating	IP65
Drop Tolerance	4 ft. drop onto concrete
Vibration/Shock	MIL-STD-810G
Certifications	CE/FCC/CCC/SAR/UL/CE/CB/CCC
Mechanical
Dimensions (W x H x D)	280 x 18.3 x 180.1 mm (11 x 0.7 x 7.1 in)
Weight	980 g
Environment
Audio Jack	2 x 2W speakers, 1 x microphone
Power System
Battery	Main battery: 4S1P 14.4V 3250mAh Hot-swappable external battery: 4S2P 14.4V 4300mAh (supports up to 11 hours operation*)
Input Voltage	19V ± 5%



Optional Accessories and Extension Modules for the PWS-872 Series

Universal Cover Package PWS-870-UCOVER00E

The PWS-870 Universal Cover Package from Advantech includes a durable cover designed to protect the PWS-870 rugged tablet from scratches and impacts. It features a kickstand and handle, providing convenience and ease of use for field professionals.

MSR & Smart Card Reader Extension PWS-870-EXT300E

The PWS-870 EXtension 300E is an I/O extension module for the PWS-870 rugged tablet, providing additional connectivity options including two USB 3.0 ports, a LAN port, and an HDMI port. It enhances the tablet's functionality for various industrial applications.

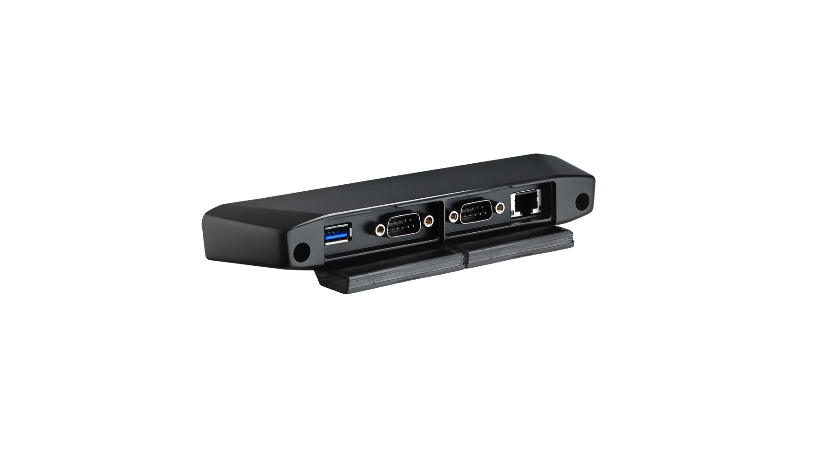

Additional I/O PWS-870-EXT100E

The PWS-870 EXtension 100E is an I/O extension module designed for the PWS-870 and PWS-872 rugged tablets. It provides additional connectivity options including one USB 3.0 port, two RS-232 ports, and an Ethernet port, enhancing the tablet's interface capabilities for industrial applications.

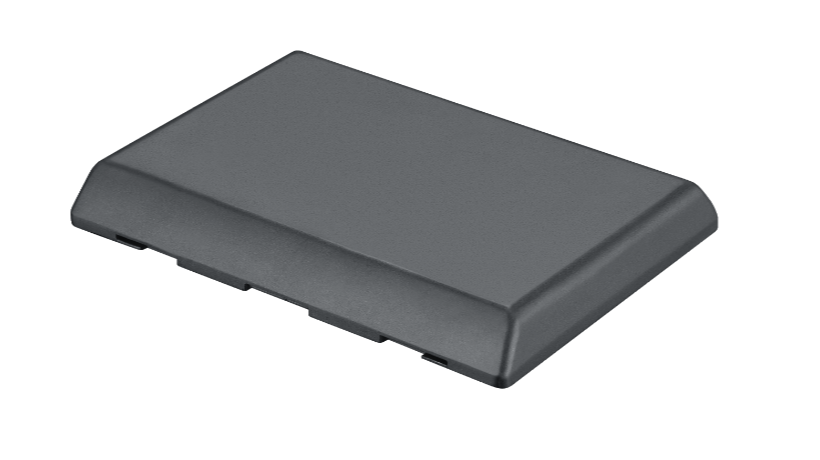

Additional Battery PWS-870/872 and Charger PWS-870-MBC00E

The PWS-870 BAT200E is a rechargeable lithium-ion battery designed for the PWS-870 rugged tablet. It offers a high capacity of 4300mAh, providing extended battery life for field operations and ensuring reliable power supply for demanding industrial tasks.
The PWS-870 MBC00E is a multi-bay battery charger designed for the PWS-870 rugged tablet, capable of charging up to four batteries simultaneously. It offers efficient and convenient power management for extended field use.

Anti-Glare Film PWS-872-PROFILM

The PWS-872 ProfiLM is a protective film for the PWS-872 rugged tablet, designed to shield the screen from scratches, dust, and other damage while maintaining clarity and touch sensitivity.

Desk Docking Station PWS-870-CRADLE00E

The PWS-870 Desk Docking Station is designed to provide convenient connectivity and charging for the PWS-870 rugged tablet. It includes multiple ports such as USB, Ethernet, and serial connections, enhancing the tablet's functionality in a stationary setup.

Vehicle Docking Station PWS-870-VCRADLE00E

The PWS-870 Vehicle Docking Station offers a secure mounting solution for the PWS-870 rugged tablet in vehicles. It features multiple ports for USB, Ethernet, and serial connections, providing robust connectivity and charging while on the move.
