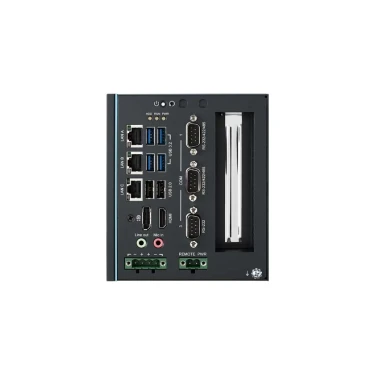

UNO-348 Expandable Embedded Box IPC with 10th Gen Intel® CPU
- Device model: DF-RP-1112
- Brand: Advantech
Viewed 614 times
UNO-348 is a high-performance, fanless, embedded edge controller equipped with a 10th gen. Intel® Core™ i5 processor with 8/16 GB DDR4 memory and Intel® Intel H420E and W480E PCH chipset. Despite its compact size, UNO-348 offers multiple I/O including 4 x USB 3.2, 2 x USB 2.0, 3 x GigaLAN, 2 x RS-232/422/485, and 1 x RS-232 ports, as well as 1 x Line-out, 1 x Mic-in, 1 x DisplayPort, and 1 x HDMI interfaces. Designed to deliver high-performance computing and maximum flexibility for industrial automation applications, UNO-348 also features 2 x internal HDD/SSD bays, 1 x full-size mPCIe, 1 x M.2 B-key, and up to 3 x PCIe/PCI expansion slots (1 x PCIe x16, 2 x PCI) to support the integration of optional peripherals. UNO-348 is also equipped with Advantech’s iBMC technology to support remote OOB power management to reduce system downtime and operational costs.
Features
- Intel® 10th Gen socket type processor with DDR4 memory
- Scalable CPU, RAM selection
- Compact, rugged and fanless design for harsh embedded environment
- Flexible expansion with up to 3 x PCIe/PCI slots, 1 x M.2 (B-key), 1 x mPCIe & 2 x 2.5" SSD
- Optional iDoor expansion
- Remote out-of-band (OOB) power management with Advantech’s iBMC technology
- Built-in TPM2.0 for hardware-based security
Specifications
Download UNO-348 Specification in PDF [ENG]
| Model | UNO-348-A531A |
| Environment | |
| Ingress Protection | IP20 |
| Operating Temperature | -20~50 °C (-4~122 °F) |
| Relative Humidity | 95% RH (non-condensing) |
| Shock Protection | 50 G, half sine |
| Storage Temperature | -40~85 °C (-40~185 °F) |
| Vibration Protection | 4 Grms, random |
| Hardware | |
| Certification | CB, UL, CE, FCC Class A, CCC, BSMI |
| CPU | Intel® Core™ i5-10500TE 2.3GHz 6-Core |
| Graphics Engine | Intel® HD Graphics |
| Hardware Security | TPM 2.0 |
| Memory | 2 x SO-DIMM with 8 GB DDR4 2933 MHz |
| OS Support | Microsoft® Windows 10 LTSC, Microsoft® Windows 11, Linux |
| Power Input | 10~36 VDC |
| Storage | 2 x 2.5" SSD/HDD Bay |
| I/O Interface | |
| Audio | Line-In (Pin Header), Line-Out (Pin Header), Microphone (Pin Header) |
| Displays | 1 x DP, 1 x HDMI |
| Expansion | 1 x Full-size mPCIe Slot, 1 x M.2 B key, 1 x PCIe x16 |
| LAN Ports | 3 x 10/100/1000 Mbps |
| Power Connector | 1 x 4-Pin Terminal Block |
| Serial Ports | 1 x RS-232, 2 x RS-232/422/485 |
| USB Ports | 4 x USB 3.2, 2 x USB 2.0 |
| Mechanical | |
| Dimension (W x H x D) | 200 x 140 x 120 mm |
| Enclosure | Aluminum housing |
| Weight (Net) | 3.5 kg (7.72 Ib) |
