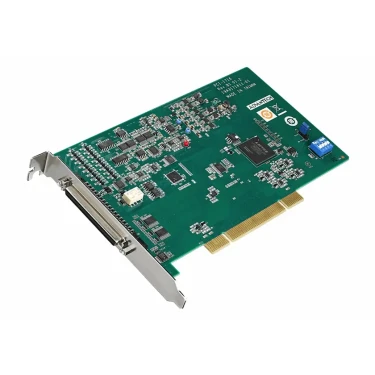

PCI-1716 16-ch, 16-bit, 1 MS/s or 500 kS/s Multifunction PCI Card
- Device model: DF-RP-1083
- Brand: Advantech
Price to be announced
Viewed 17064 times
Features
- 16 single-ended or 8 differential or a combination of analog inputs
- 16-bit A/D converter, with up to 500 kHz sampling rate
- FIFO memory (8,192 samples)
- 2 analog output channels
- 16-ch digital input and 16-ch digital output
- Auto-calibration
- BoardID™ switch
Download PCI-1716/L/H Specification in PDF [ENG]
| Model | PCI-1716-BE | PCI-1716L-BE | PCI-1716H-AE | |
| Analog Input | ||||
| Channels | 16 | |||
| Input Range | ±0.625 V, ±1.25 V, ±2.5 V, ±5 V, ±10 V, 0~1.25 V, 0~2.5 V, 0~5 V, 0~10 V | |||
| Resolution (Bits) | 16-bit | |||
| Sampling Rates (S/s) | 500 KS/s (sum) | 500 KS/s (sum) | 1 MS/s (sum) | |
| Analog Output | ||||
| Channels | 2 | 2 | ||
| Input Range | 0~5 V, 0~10 V, ±5 V, ±10 V | 0~5 V, 0~10 V, ±5 V, ±10 V | ||
| Resolution (Bits) | 16-bit | 16-bit | ||
| Update Rate(S/s) | 1 MS/s | 1 MS/s | ||
| Counter/Encoder Input | ||||
| Channels | 1 | |||
| Counting Range | 16-bit | |||
| Digital Input | ||||
| Channels | 16 (TTL) | |||
| Digital Output | ||||
| Channels | 16 (TTL) | |||
| General | ||||
| Programming Language | C#, C++, LabVIEW, VB.Net, BCB, MFC, VB6, Delphi, Java, Matlab, Qt | |||
