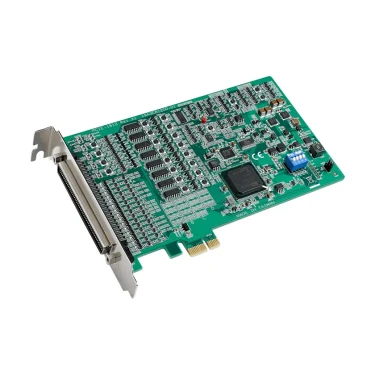

PCIE-1812 250 kS/s, 16-bit, 8-ch, Simultaneous Sampling, Multifunction PCIE Card
- Device model: DF-RP-1081
- Brand: Advantech
Price to be announced
Viewed 37079 times
PCIE-1812-AE is a simultaneous-sampling multifunction DAQ card designed to meet a wide range of application requirements. PCIE-1812-AE supports simultaneous sampling of 8 analog input channels with differential input configuration for maximum noise elimination. In addition to providing 2-ch, 16-bit analog outputs with waveform generation capabilities, PCIE-1812-AE supports simultaneous waveform generation and analog input functions.
Features
- 8 differential simultaneous sampling analog inputs, up to 250 kS/s, 16-bit resolution
- 2 analog outputs, up to 3 MS/s, 16-bit resolution
- Full automatic calibration
- 2 analog triggers and 2 digital triggers for analog I/O
- 32 programmable DI/Os with interrupt functions
- Four 32-bit programmable counters/ timers/ encoders
- Board ID switch
Download PCIE-1812 Specification in PDF [ENG]
| Model | PCIE-1812-AE |
| Analog Input | |
| Channels | 8 |
| Input Range | ±0.625 V, ±1.25 V, ±2.5 V, ±5 V, ±10 V, 0~1.25 V, 0~2.5 V, 0~5 V, 0~10 V |
| Resolution (Bits) | 16-bit |
| Sampling Rates (S/s) | 250 KS/s (per channel) |
| Analog Output | |
| Channels | 2 |
| Output Ranges | 0~5 V, 0~10 V, ±5 V, ±10 V |
| Resolution | 16-bit |
| Update Rate (S/s) | 3 MS/s |
| Counter/Encoder Input | |
| Channels | 4 |
| Couting Range | 32-bit |
| Mode | Counter (up/down, bi-direction, up, A/B Phase) |
| Digital Input | |
| Channels | 32 (TTL) |
| Digital Output | |
| Channels | 32 (TTL) |
| General | |
| Programming Language | C#, C++, LabVIEW, VB.Net, BCB, MFC, VB6, Delphi, Java, Matlab, Qt |
