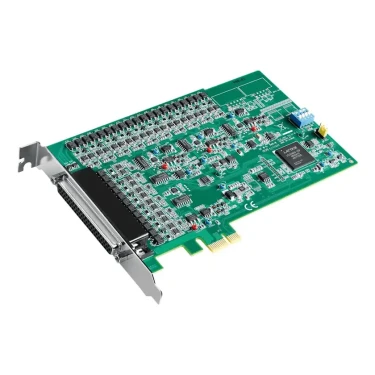

PCIE-1824 16-bit ,32/16-ch Analog Output PCIE Card
- Device model: DF-RP-1079
- Brand: Advantech
Price to be announced
Viewed 67895 times
PCIE-1824-AE is a high-density multiple channel analog card for the PCIE bus, where each analog output channel is equipped with a 16-bit DAC. It features optional voltages, current output and a Board ID switch. PCIE-1824-AE is an ideal solution for industrial applications where multiple analog output channels are required.
Features
- 32/16 high-density analog output channels
- Flexible Output Range: ±10 V, 0 ~ 20 mA and 4 ~ 20 mA
- Synchronized output function
- Keep output values when hot system reset
- High ESD protection (2,000 VDC)
- Board ID switch
Download PCIE-1824 Specification in PDF [ENG]
| Model | PCIE-1824-AE |
| Analog Output | |
| Channels | 32 |
| Output Range | ±10 V, 0~20 mA, 4~20 mA |
| Resolution (Bits) | 16-bit |
| Update Rates (S/s) | Static update |
| General | |
| Programming Language | C#, C++, LabVIEW, VB.Net, BCB, MFC, VB6, Delphi, Java, Matlab, Qt |
