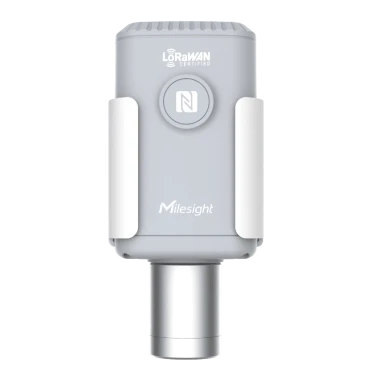

EM500-CO2 is designed for measuring CO2, temperature, humidity and barometric pressure in harsh environments and transmitting data using LoRaWAN® technology. With this low power consumption technology, EM500-CO2 can work up to 10 years with a 19000 mAh battery. Combining with Milesight LoRaWAN® gateway and Milesight IoT Cloud solution, users can manage all sensor data remotely and visually.

EM500-CO2 is widely used for applications like smart agriculture, smart cities, forest fire detection, etc.



Features

• Integrated with multiple sensors like CO2, temperature, humidity, etc.
• Ultra-wide-distance transmission up to line of sight of 10km.
• IP65 waterproof enclosure for harsh environment applications.
• Built-in 19000 mAh replaceable battery and work for 10 years without replacement.
• Equipped with NFC for easy configuration.
• Compliant with standard LoRaWAN® gateways and network servers.
• Quick and easy management with Milesight IoT Cloud solution.



Applications

• Warehouse environment monitoring
• Basement and underground parking monitoring
• Smart agriculture
• Forest fire detection
• Smart building

Product Specification

Download EM500-CO2 Specification in PDF [ENG]

Model	EM500-CO2
Wireless Transmission
Technology	LoRaWAN®
Frequency	CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4
Tx Power	16dBm(868)/20dBm(915)/19dBm(470)
Sensitivity	-137dBm @300bps
Mode	OTAA/ABP Class A
Sensors (Carbon Dioxide (CO2))
Sensor Type	NDIR
Range	400 - 5000 ppm
Accuracy	± (30 ppm + 3 % of reading) (0°C - 50°C, 0 - 85%RH)
Resolution	1 ppm
Sensors (Temperature)
Sensor Type	MEMS
Range	-30°C to + 70°C
Accuracy	0°C to + 70°C (+/- 0.3°C), -30°C to 0°C (+/- 0.6°C)
Resolution	0.1°C
Sensors (Humidity)
Sensor Type	MEMS
Range	0% to 100% RH
Accuracy	10% to 90% RH (+/- 3%), below 10% and above 90% RH (+/- 5%)
Resolution	0.5% RH
Sensors (Barometric Pressure)
Sensor Type	MEMS
Range	300 - 1100 hPa (-40°C - 85°C)
Accuracy	±1 hPa
Resolution	0.1 hPa
Operation
Power On & Off	NFC, Power Button (Internal)
Configuration	Mobile App(via NFC) or PC software(via USB Type-C)
Advanced Features	Data Storage (1000 pieces), Data Retransmission, Threshold Alarm
Physical Characteristics
Power Supply	19000 mAh Li-SOCL2 Battery (ER34615)
Battery Life*	10 years (10 min interval)
Operating Temperature	-30°C to +70°C
Relative Humidity	0% to 100% (non-condensing)
Ingress Protection	IP65
Dimension	147.9 × 71 × 69.5 mm
Installation	Pole, Wall or DIN Rail Mounting
Approvals
Regulatory	CE, FCC, RoHS, LoRaWAN® Certified, ISED, ICASA
EMC	EN 55032, EN 55035
EMS	IEC 61000-4-2 Level 3 IEC 61000-4-3 Level 2 IEC 61000-4-8 Level 4
Radio Frequency	FCC Part 15B, FCC Part 15.247, EN 300 330, EN 301 489-1/3, EN 300 220-1/2
Safety	EN62368-1

* Tested under laboratory conditions and for guideline purposes only.
