PCIE-1805 1MS/s, 16-bit, 32-ch Analog Input PCIE Card

PC-based testing and measurement systems are widely used in IEM applications such as monitoring, control, data acquisition and automated testing. Dependable results require optimal matching of transducers, data acquisition systems, and software.

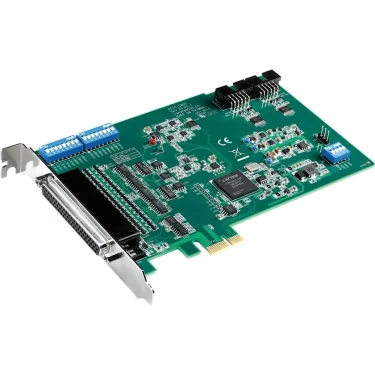

PCIE-1805 is a high-resolution, high-channel-count analogue input PCIE card. It provides 32 channels of multiplexed voltage/current measurement, up to 1 MS/s sample rate, and 16-bit resolution analogue input with low distortion and noise performance. The card features a variety of input ranges and covers both voltage and current measurements. It can easily be applied to most of the industrial applications.

DAQNavi - is a bundle, software and driver package, which helps engineers to use the device and programmers develop their application.





Product Specification

Download PCIE-1805-AE Specification in PDF [ENG]

Model	PCIE-1805
Analog Input PCIE Card
Bus Type	PCI Express x1
I/O Connector	1 x DB62 female connector
Dimensions	16,8 x 9,8 cm
Analog Input
Channels	32 single-ended, 16 differential, or combination
Resolution(Bits)	16-bit
Max. Sampling Rate (sum)	1MS/s, shared by all enabled channels
Input Range	±1 V, ±5 V, ±10 V, 0~20 mA, 4~20 mA
Software
SDK and drivers	DAQNavi
Programming Language	C#, C++, LabVIEW, VB.Net, BCB, MFC, VB6, Delphi, Java, Matlab, Qt
Power Requirements
Input Voltage	±10 V/±5 V/±2 V/±1 V/0 ~ 20 mA/4 ~ 20 mA
Power Consumption	+3.3 V 300 mA typ./320 mA max.
Environment
Operating Temperature	0 ~ 60° C (32 ~ 140° F) (refer to IEC 68-2-1, 2)
Storage Temperature	-20 ~ 70° C (-4 ~ 158° F)
Storage Humidity	5 ~ 95% RH, non-condensing (refer to IEC 68-2- 3)
Certifications	CE, FCC



Features

• 32-ch single-ended or 16-ch differential or a combination of analogue input
• 16-bit A/D converter, with up to 1MHz sampling rate
• Multi-card synchronization
• Current measurement (0-20mA or 4-20mA)
• Support digital and analogue triggers
• Auto calibration

You can prefer it because of its price in comparison with an alternative NI PCI-6229 or PCIe-6323 cards.
