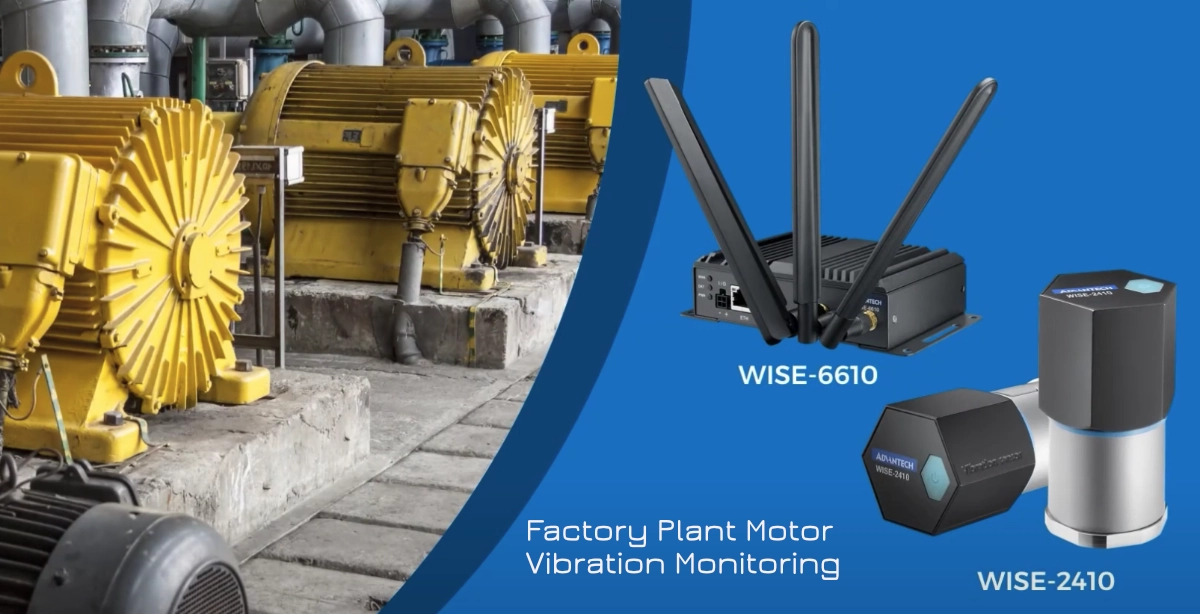

WISE-2410SK - Wireless Condition Monitoring Kit

The WISE-2410SK is a ready-to-use LoRaWAN wireless health monitoring solution. This kit includes a WISE-2410 vibration sensor, a WISE-6610 LoRaWAN gateway, a magnetic base and 2 batteries for the WISE-2410, as well as an AC and DC adapter for the WISE-6610.

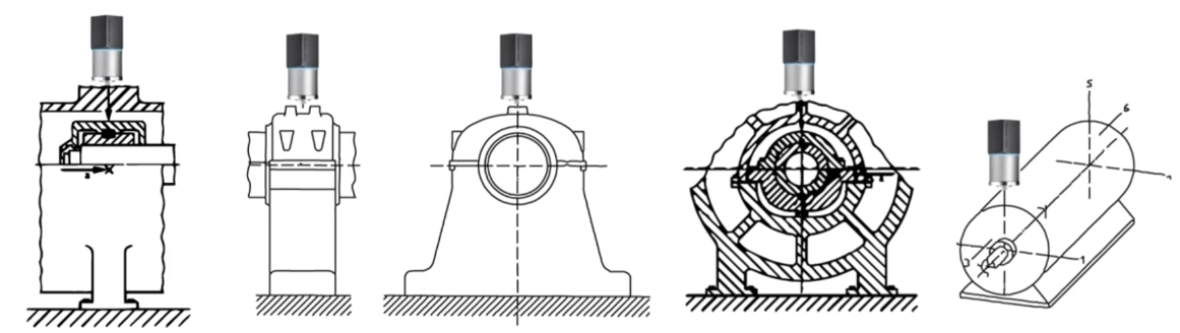

Area of use. WISE-2410SK kit designed for monitoring motors, water pumps, boilers, conveyor belts, industrial compressors, etc.

WISE-2410 Wireless LoRaWAN Vibration Sensor from Advantech with an internal temperature sensor. Condition-Based Preventive Maintenance LoRaWAN I/O modules and sensors play key roles in preventive maintenance as they support continuous data collection and condition monitoring.
The WISE-2410 is a wireless LoRaWAN vibration sensor that features an ARM Cortex-M4 processor, a LoRa transceiver and a 3-axis accelerometer and temperature sensor. It distributes the bandwidth between the WISE-2410 and the gateway, reducing error rates in data transmissions from edge devices and gateways. It can be powered using the Micro-B USB port or 2x 3.6V AA batteries. Battery life cycle is 2 years with IP66 enclosure. The IP66 housing is suitable for use in Low Power Wide Area Network (LPWAN) applications such as pumps, motors, HAVC systems, plant monitoring and the like. This LoRaWAN vibration sensor can be connected to Advantech's WISE Studio Utility for efficient and user-friendly installation. By integrating with WebAccess/SCADA, it gives an overview of facility performance through visualization Grafana dashboard. Consolidating key indicators and producing insight reports assists engineers in analyzing abnormal conditions, and helps owners in data-driven decision-making.

The WISE-6610 is Advantech's industrial all-in-one LoRaWAN gateway, network and application server. It supports the LoRaWAN protocol for building private and public LoRaWAN networks, as well as various protocols including MQTT. The hardware and software flexibility of the WISE-6610 provides comprehensive capabilities for intelligent edge systems. Additionally, this gateway has redundancy features to prevent loss of connectivity.



Network topology

This LoRaWAN vibration sensor utilizes a star network topology and provides a gateway data transmission function between the sensors and the application server. The communication between the sensors and gateway utilizes LoRa-WAN technology, while the connection between the gateways and the central server is via a backbone IP-based network or Modbus protocols. WISE-6610 Industrial All-in-One LoRaWAN solves VPN tunneling with various protocols to ensure secure communication.



LoRaWAN Wireless Condition Monitoring Kit

• LoRaWAN wireless connection.

• Built-in 3-axis accelerometer and temperature sensor.

• Built-in Calculation: Sends VRMS, ARMS, Peak, Bias, Kurtosis, Crest Factor, Skewness, and Standard Deviation values directly to the application.

• Supports battery power, no wiring required.

• Easy setup with the user-friendly interfaces of the WISE Studio utility.

• Complies with ISO 10816-1 standard.

• Supports a wide temperature range of -20 ~ 80 °C.

• IP66 housing design.



The set consists of

1. WISE-2410 vibration sensor

2. WISE-6610 LoRaWAN Gateway

3. Magnetic base

4. 2 x batteries for WISE-2410

5. AC/DC adapter for WISE-6610





WISE-2410SK Specification

Download WISE-2410SK specification [ENG, PDF]

Download WISE-2410 specification [ENG, PDF]

Download WISE-2410 User Manual [ENG, PDF]

Download WISE-6610 specification [ENG, PDF]



WISE-6610
Wireless LAN Communications
Frequency	868MHz/ 915MHz/ 923MHz
Antenna Connector Type	RP-SMA male
Wireless Standard	LoRaWAN
Wireless Security	HTTPS, SSH, VPN tunnels, SFTP, DMZ, Firewall (IP Filtering, MAC address filtering, Inbound and outbound Port filtering)
Certification
EMC	EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
LoRa	LoRa
Shock	IEC 60068-2-27
Vibration	IEC 60068-2-6
Digital I/O (B)
Port Connector	4-way Molex moni-fit connector
Environment
Humidity (Operating Range)	10 ~ 95% RH
Temperature (Operating Range)	-40 ~ 75°C
Temperature (Storage Range)	-40 ~ 80°C
Ethernet (X)
Interface	10/100 Mbps
Ports	1
Ethernet Communication
Port Type (X)	RJ45
Mechanical (X)
Mounting	DIN-rail, Wall
Power Requirement (X)
Power Connector	Terminal block
Power Input	9 ~ 36 VDC
Power
Power Consumption	9W
Software
Configuration	SSH, Web Browser
Network and Routing	DHCP Server, NAT/PAT, VRRP, Dynamic DNS client, DNS proxy, VLAN, QoS, DMVPN, NTP Client/Server, IGMP, BGP, OSPF, RIP, SMTP, SMTPS, SNMP v1/ v2c/ v3, Backup Routers, PPP, PPPoE, SSL, Port Forwarding, Host Port Routing, Ethernet Bridging, Network Server
